Description :

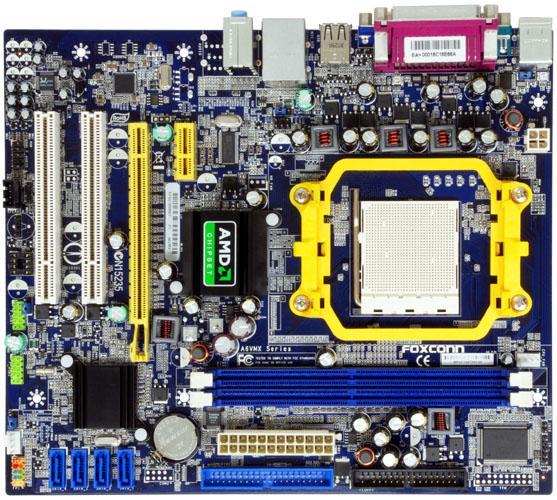

FOX A6VMX 690V AM2+/AM2 MATX 2DR800 PCIE S4 8USB
MEMO
Format : MATX
Processeur : AM2 64 Phenom,AMD Athlon™ 64FX, Athlon™ 64x2, Athlon™ 64, Sempron™
Socket : socket 940 (AM2+)
Chipset : AMD® 690V + SB600
Mémoire : DC DDR2 800/667/533 x 2 DIMMs, Max. 4GB
Slot expansion : 1 PCI-Ex X16/1 x PCI Express x1/2x PCI
SATA-II / USB2.0 / Son 5.1 channels
PRESENTATION
Excellente solution d'entrée de gamme, la carte mère Foxconn A6VMX brille par son très bon rapport qualité/prix et par son support du nouveau socket AM2+.
POINTS FORTS
- AMD Athlon™ 64FX, Athlon™ 64x2, Athlon™ 64, Sempron™ Processors, Socket AM2
- Supports Socket AM2+ with HT1.0 interface
- 2000 MT/s HyperTransport™
- Dual channel DDR2 800/667/533 x 2 DIMMs, Max 4GB
- 1 x PCIe x16, 1x PCIe x1, 2 x PCI
- ATA x 1, SATAII x 4
- 5.1 channel, Realtek® ALC662
- 10/100M LAN, Realtek® RTL8101E
- 8 USB 2.0 ports
CARACTERISTIQUES TECHNIQUES
Processor
AMD Athlon™ 64FX, Athlon™ 64x2, Athlon™ 64, Sempron™ Processors, Socket AM2
Supports Socket AM2+ with HT1.0 interface
Chipset
AMD® 690V + SB600
Front Side Bus
2000MT/s HyperTransport™
Memory
Dual channel DDR2 800/667/533 x 2 DIMMs, Max. 4GB
VGA on Die
Integrated
Expansion Slots
1 x PCIe x16, 1 x PCIe x1, 2 x PCI
IDE
ATA 133 x1
Serial ATA(SATA)/RAID
SATAII x 4 w / RAID 0, 1, 10
Audio
5.1 channel, Realtek® ALC662
LAN
10/100M LAN, Realtek® RTL8101E
IEEE1394
N/A
Back Panel I/O Ports
1 set 5.1 channel Audio jacks (3 jacks)
1x Parallel port
1x PS/2 keyboard port
1x PS/2 mouse port
1x VGA port
4x USB 2.0 ports
1x RJ45 LAN port
1x Serial port
Internal I/O Connectors: ATX 24-Pin power connector
4-pin ATX 12V power connector
CPU / System / NB (Reserved) FAN connectors
1x CD-in connector
1x Front Audio header
1x S/PDIF Out header
1x IRDA
1x TV Out header
1x Buzzer (Reserved)
1x Floppy connector
1x Front Panel connector
2x USB 2.0 connectors support additional 4 ports
1x Speaker
4x SATAII connectors
1x Intruder
1x COM header (Reserved)
1x TPM (Reserved)
2x USB Power header
1x IDE connector
BIOS Features
8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD
Driver CD, Adobe Reader, Direct X 9.0c, Norton
Standards/Manageability
USB 2.0, WfM 2.0, DMI 2.5, WOL by PME, SPI Interface
Form Factor
Micro ATX (9.6" x 8.2")
Ces spécifications sont fournies à titre indicatif.Pick-art se réserve le droit de les modifier sans préavis.
